PT-130 Tilt & Trim
21 CMC items. Each part links to pro-parts-inc.com to order.

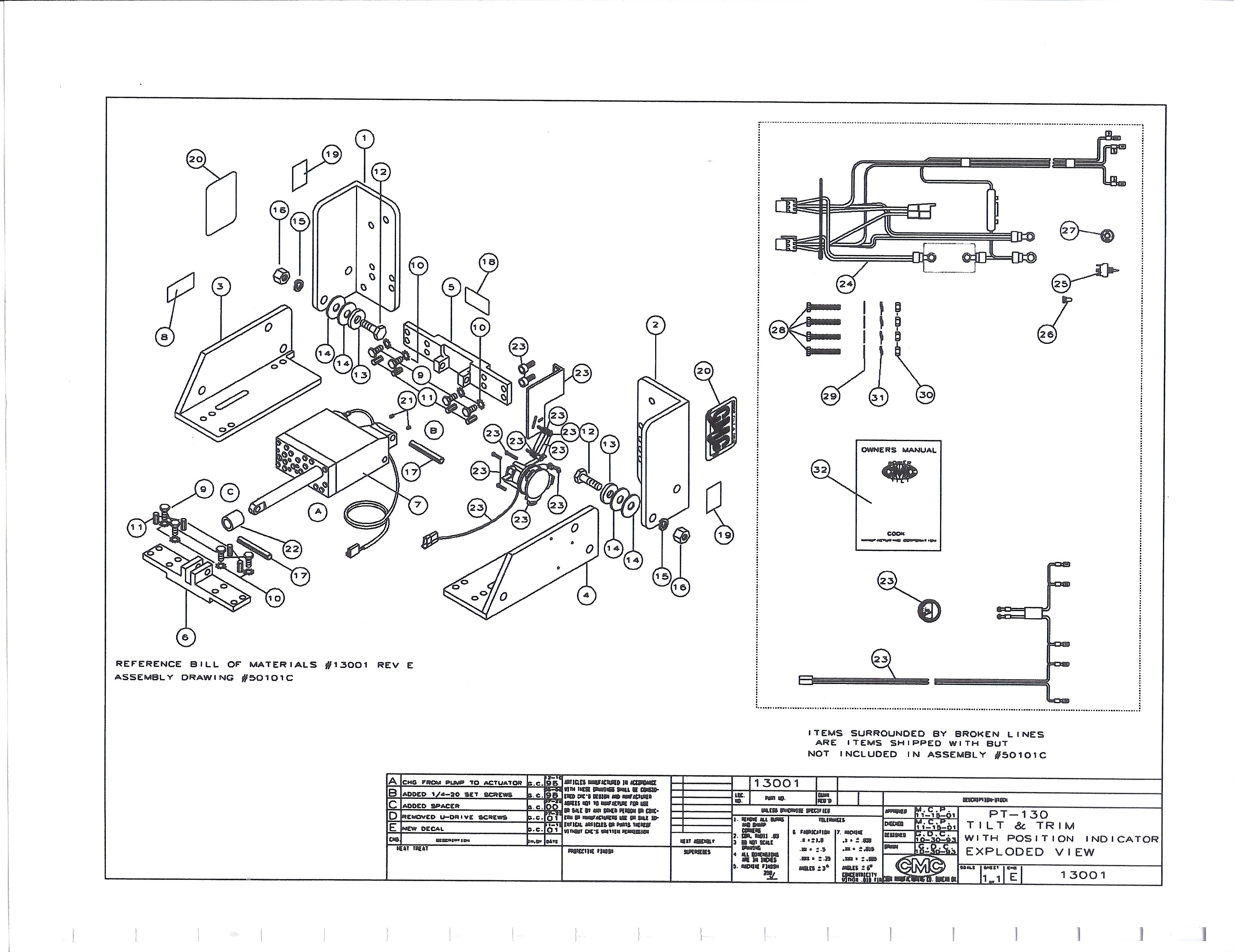

Find your part — exploded parts diagram
Tap a blue numbered dot on the diagram to jump straight to that part — or match the number yourself in the list below.
🔍 Open full-size diagram
Parts — matched to the diagram numbers
1

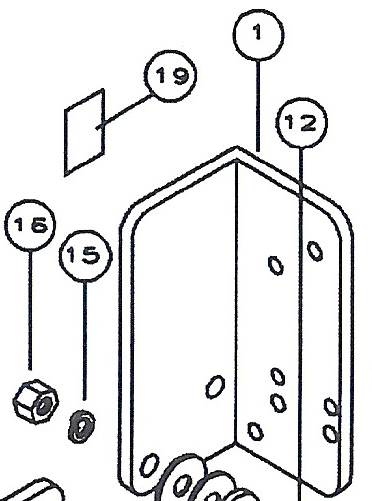

#01 PT-130 Port Side Motor Rail CMC-51012
Part #CMC-51012
View part →
2

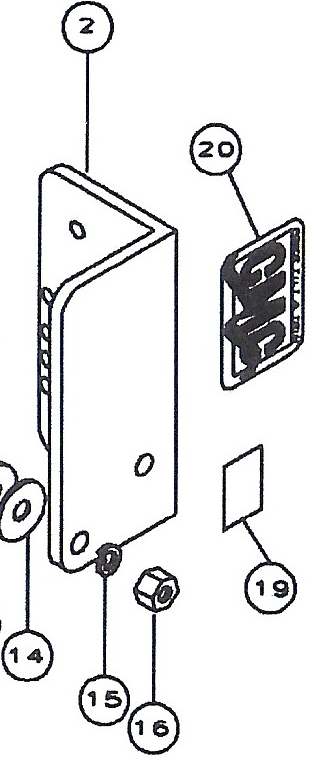

#02 PT-130 Starboard Side Motor Rail CMC-51013
Part #CMC-51013
View part →
3

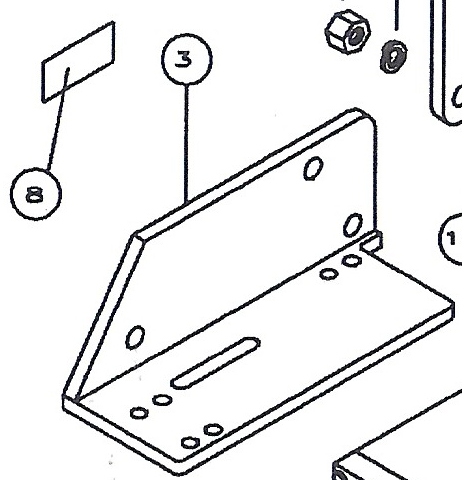

#03 PT-130 Port Side transom Rail CMC-51022
Part #CMC-51022
View part →
4

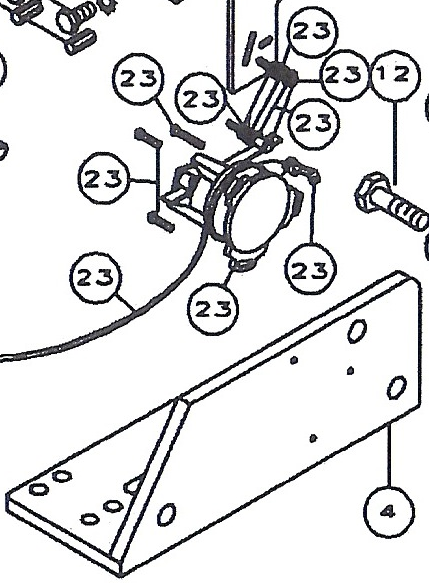

#04 PT-130 Starboard Side transom Rail CMC-51023
Part #CMC-51023
View part →
5

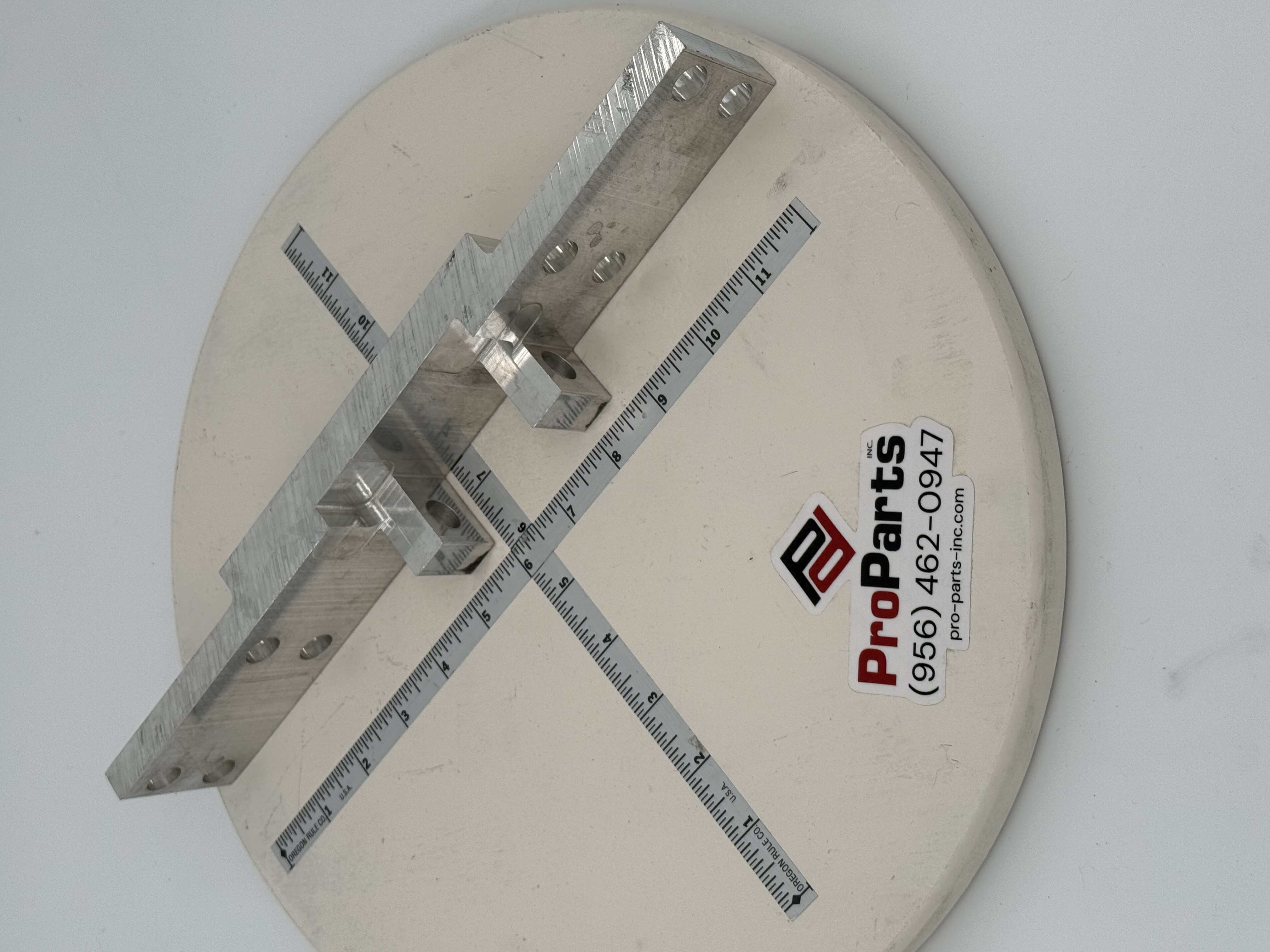

#05 PT-130 top clevis bracket for mounting 7050 hydraulic actuator CMC-51290
Part #CMC-51290
View part →
6

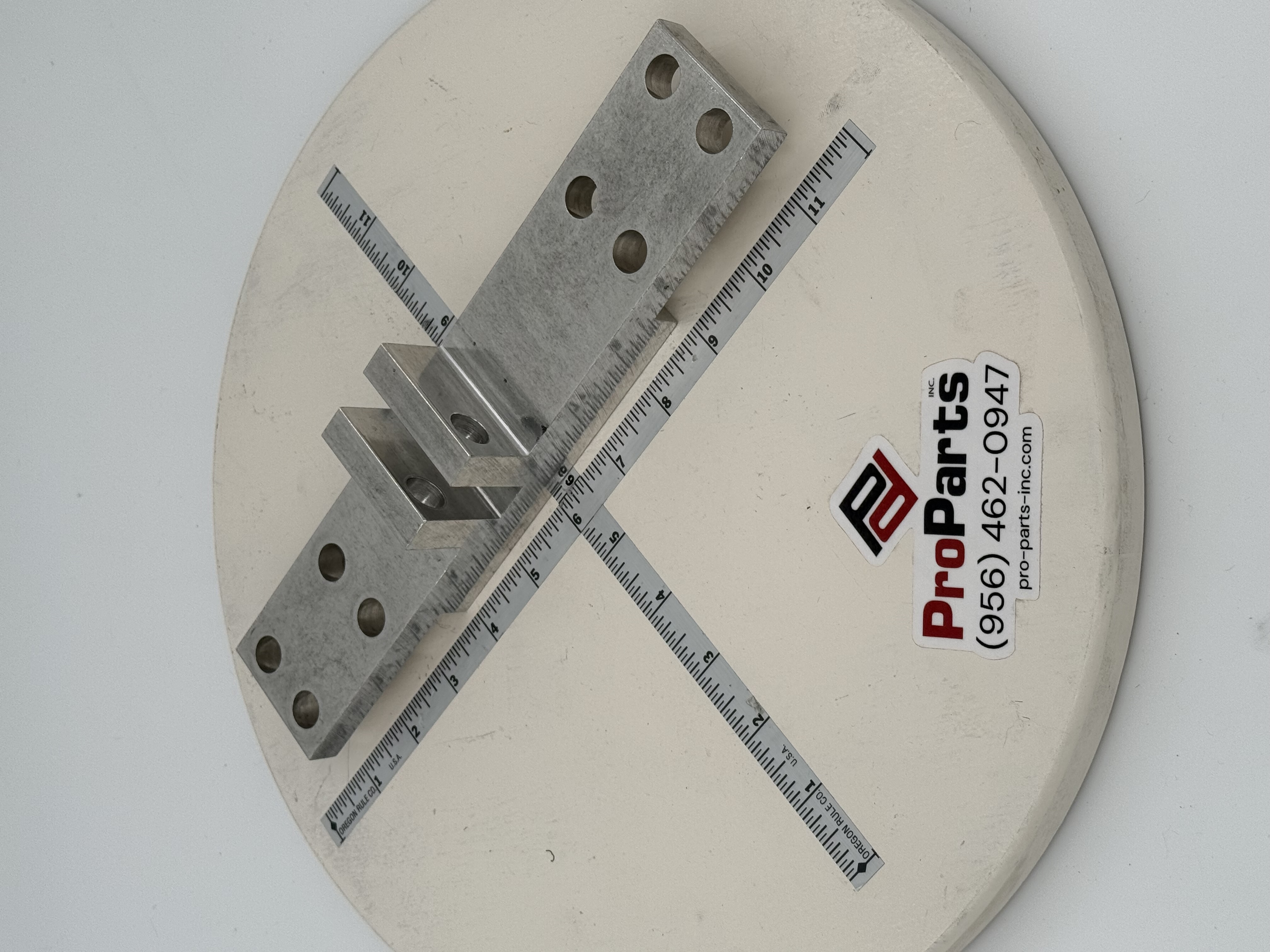

#06 PT-130 bottom clevis bracket for mounting 7050 hydraulic actuator CMC-51300
Part #CMC-51300
View part →
7

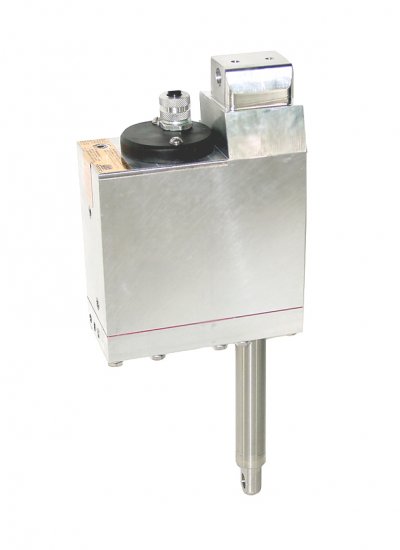

#07 CMC Hydraulic Actuator 7050 - PT-130
Part #CMC7050 and 2 X 6009
View part →
9

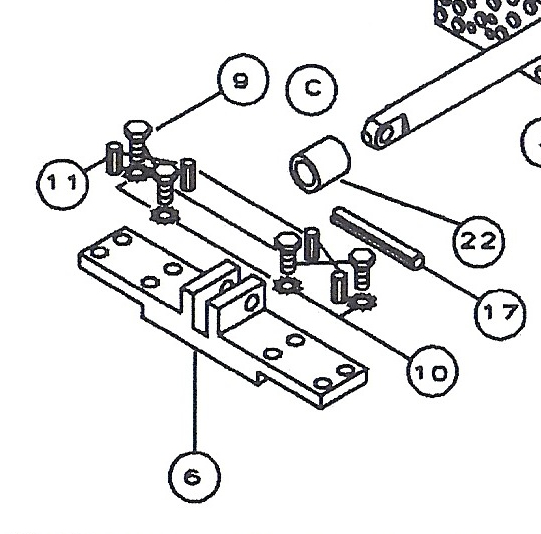

#09 PT-130 hex head cap screw CMC-6018
Part #PT-130-CMC-6018
View part →
10
#10 PT-130 external tooth lock washer CMC-6019
Part #PT-130-CMC-6019
View part →
11

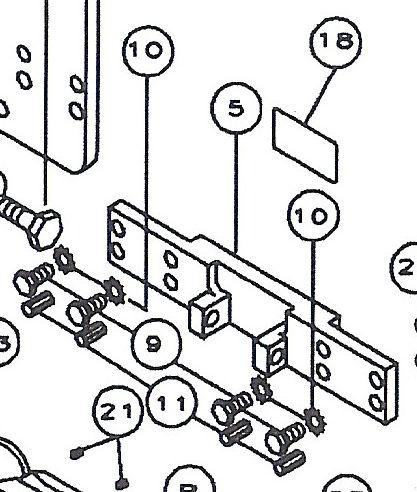

#11 PT-130 1/2" X 1" spring pin CMC-6206
Part #PT-130-CMC-6206
View part →
12
#12 PT-130 Stainless Steel Hex Head Cap Screw CMC-6046
Part #CMC-6046
View part →
13
#13 PT-130 Regular Plain Washer Stainless Steel CMC-51360
Part #CMC-51360
View part →
14

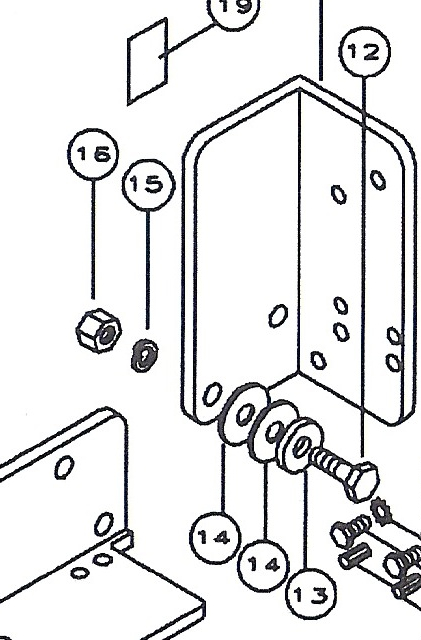

#14 PT-130 nylatron flat washer CMC-6021
Part #PT-130-CMC-6021
View part →

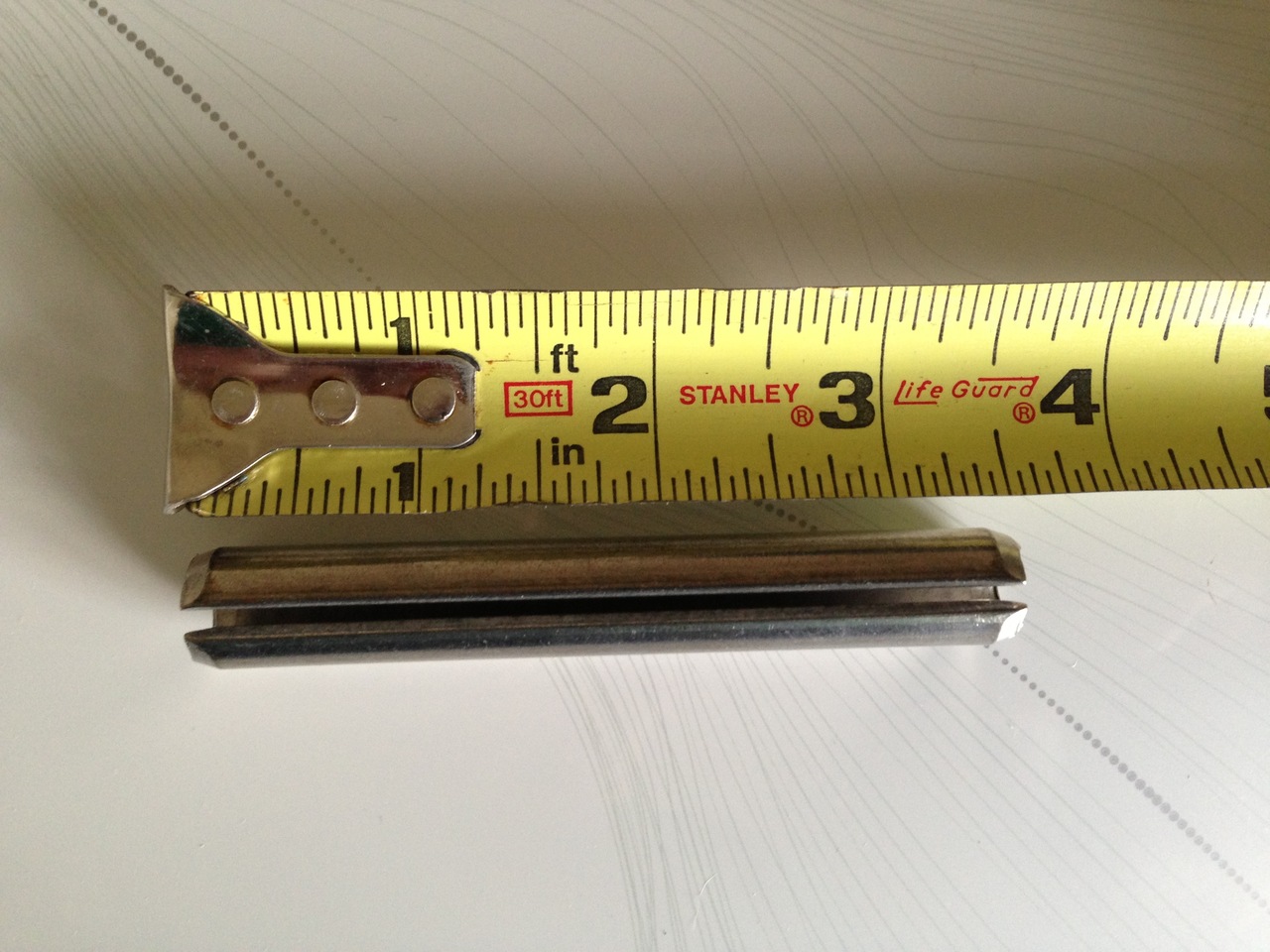

17
#17 PT-130 spring pin for mounting 7050 hydraulic actuator CMC-6009
Part #PT-130-CMC-6009
View part →
22

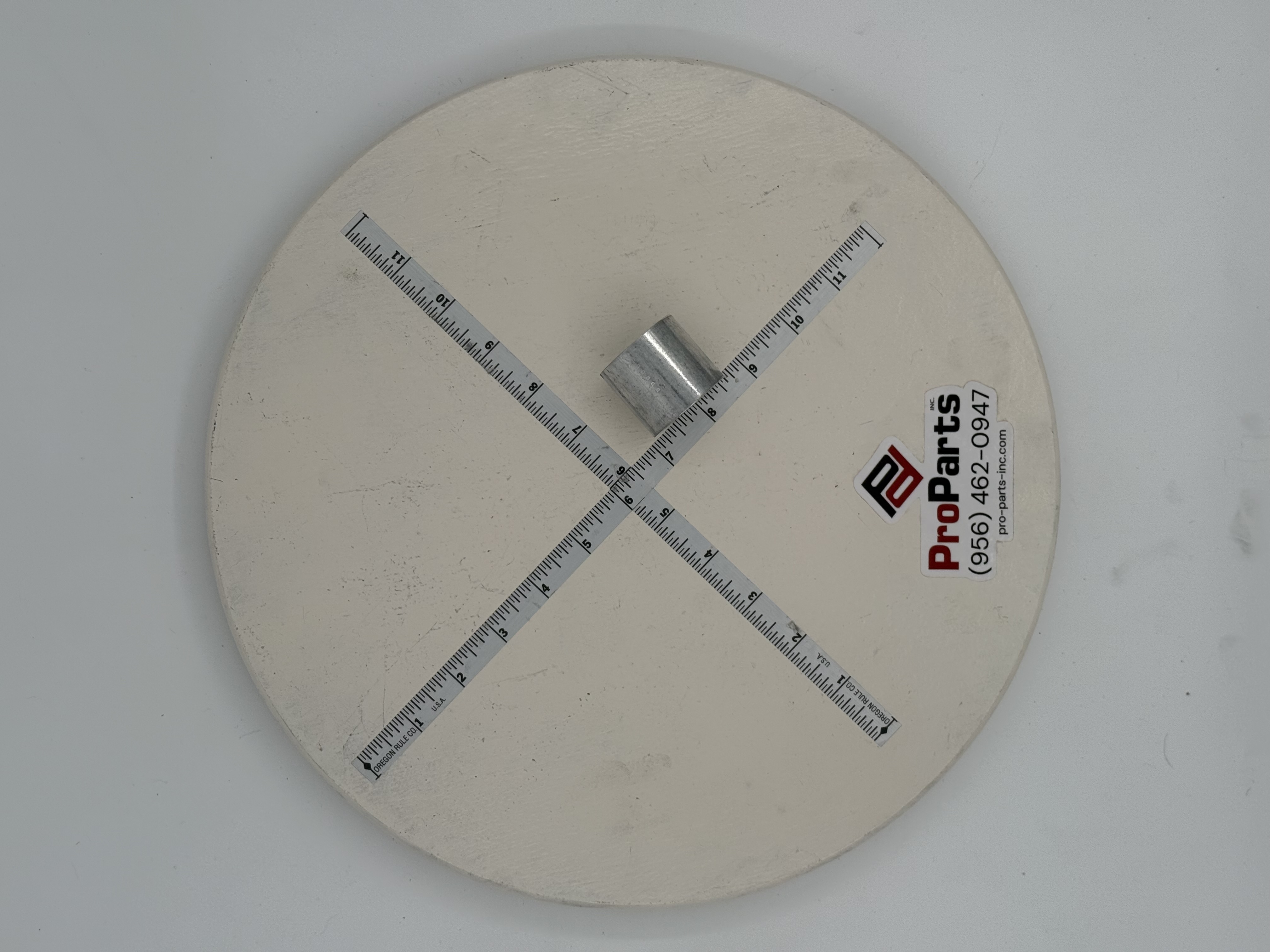

#22 PT-130 Spacer for bottom of hydraulic actuator CMC-51392
Part #CMC-51392
View part →

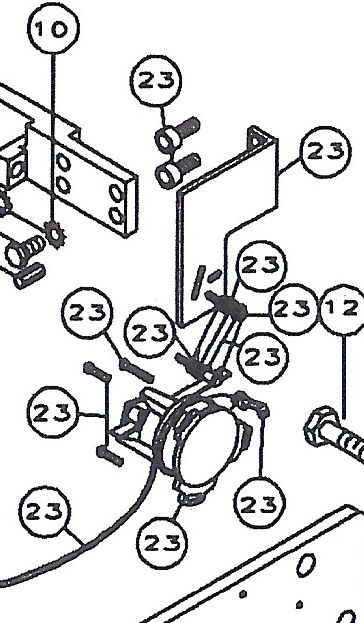

#23CMC PT-130 Position Indicator Gauge Kit CMC-51207
Part #CMC-51207
View part →
CMC PT-130 Electric Hydraulic Tilt Trim Unit 13002
Part #CMC13002
View part →

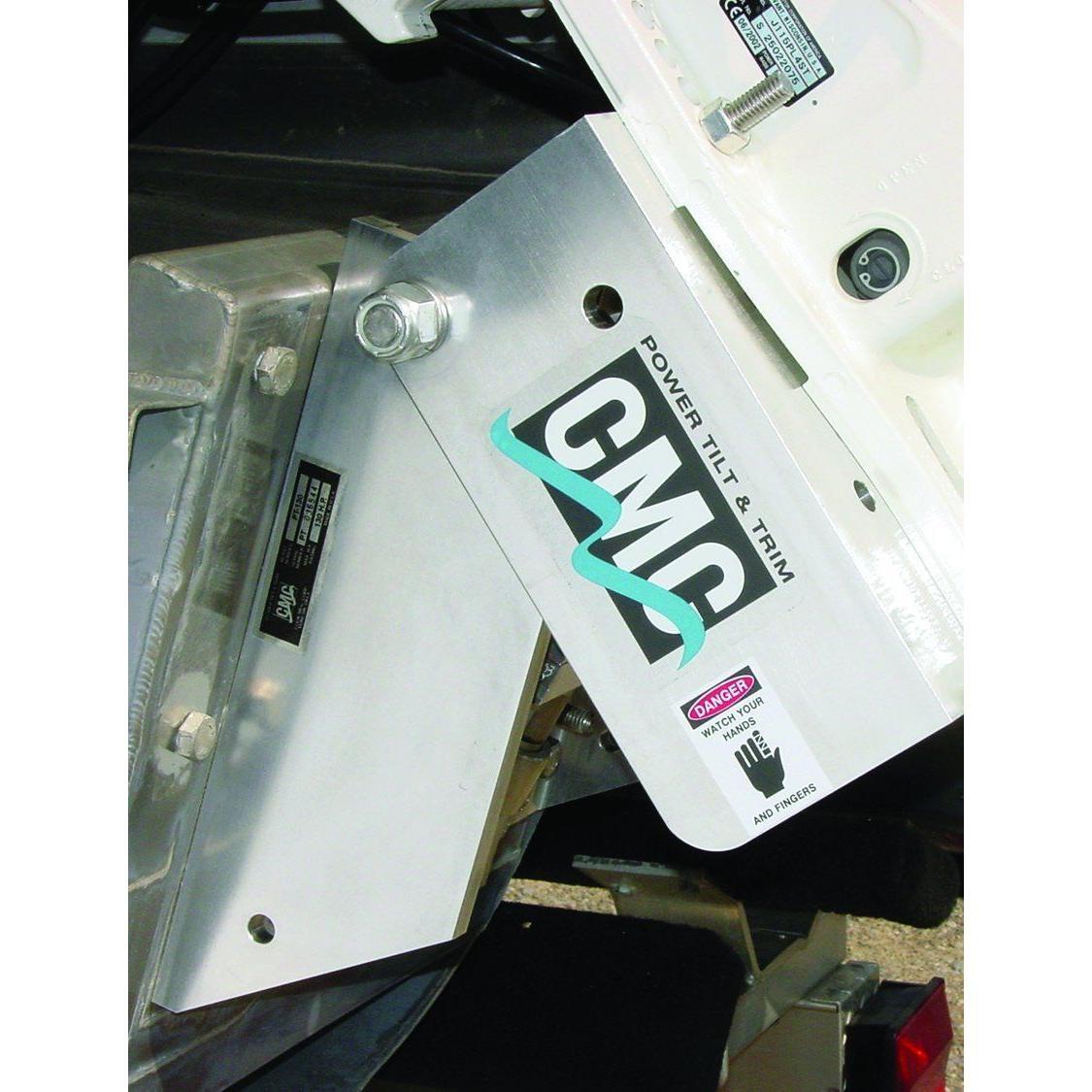

CMC PT-130 Hydraulic Electric Tilt Trim with Gauge 13001
Part #CMC13001
View part →

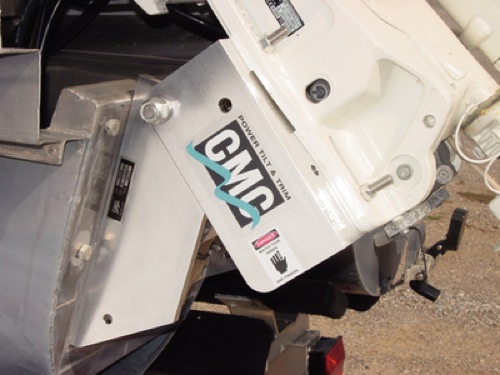

Cook Mfg. PT130 TILT & TRIM WITH GAUGE
Part #119-13001
View part →

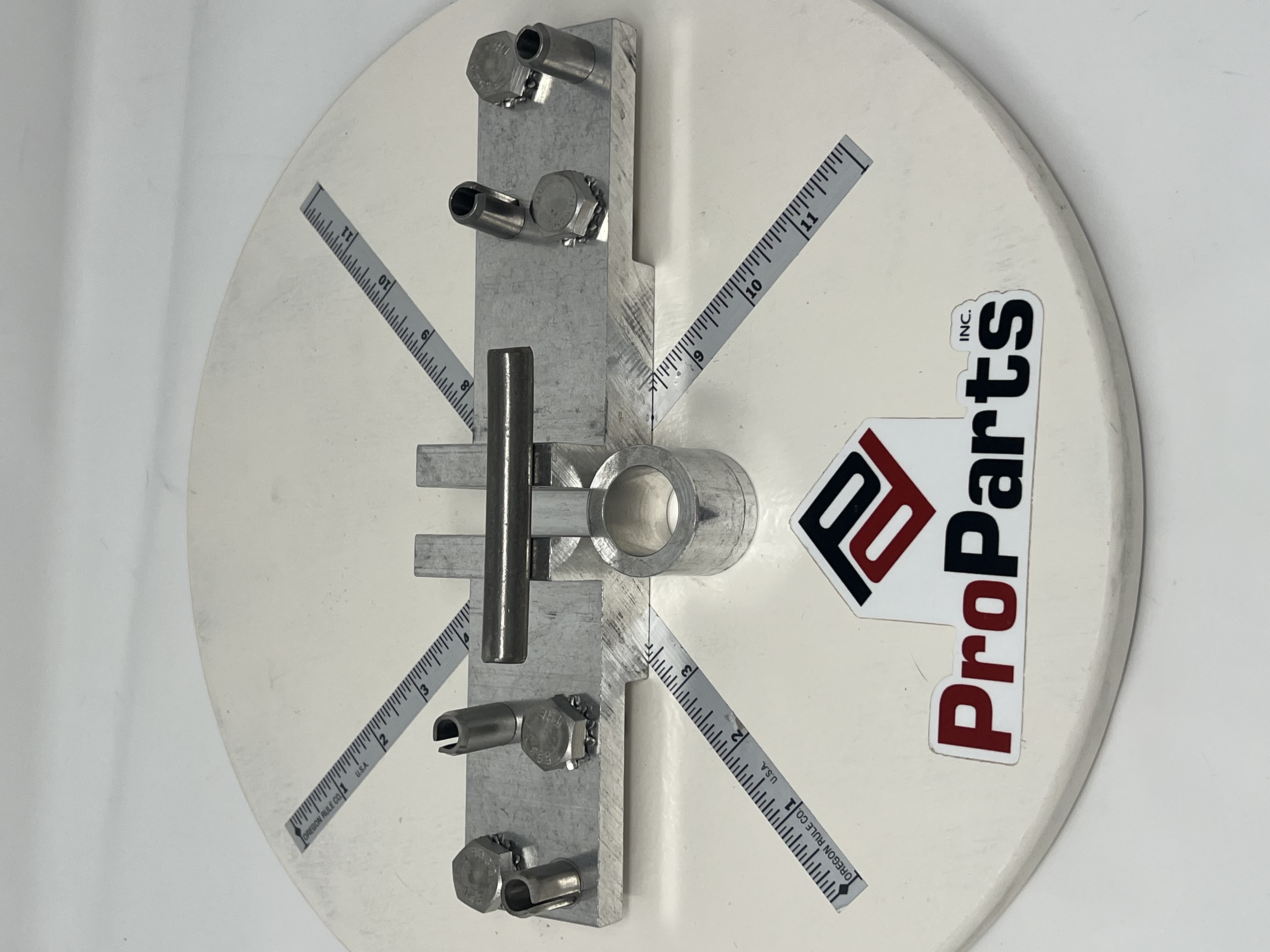

PT-130 Bottom Clevis Bracket Kit (complete)
Part #CMC-51300X1-6018X4-6019X4-6206X4-6009X1-51392X1
View part →

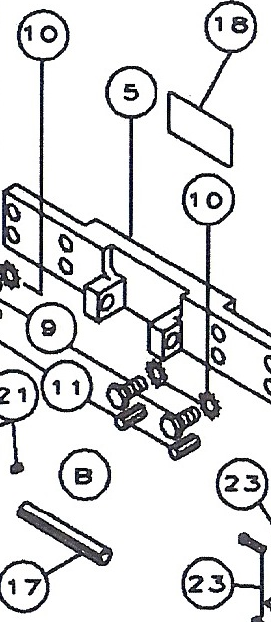

PT-130 Top Clevis Bracket Kit (complete)
Part #CMC-51290X1-6018X4-6019X4-6206X4-6009X1
View part →
