PT-35 Tilt & Trim
26 CMC items. Each part links to pro-parts-inc.com to order.

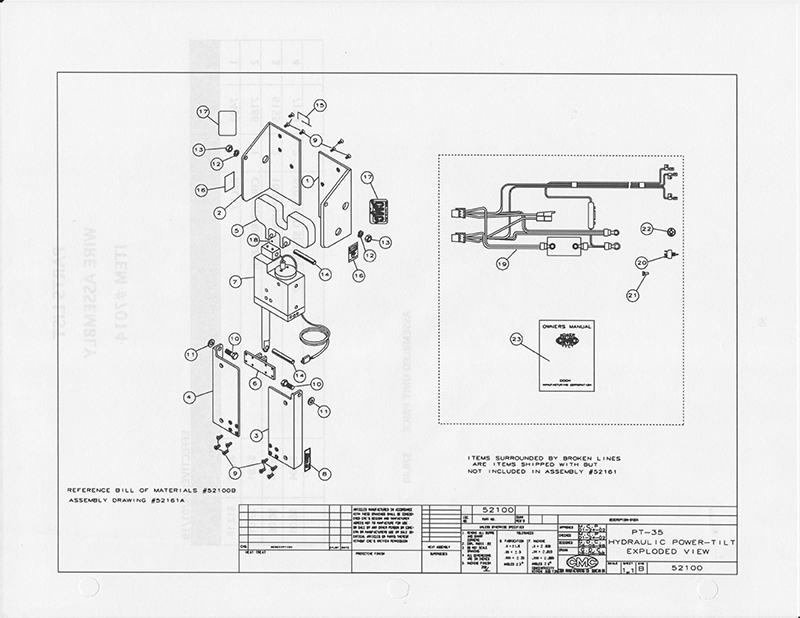

Find your part — exploded parts diagram
Tap a blue numbered dot on the diagram to jump straight to that part — or match the number yourself in the list below.
🔍 Open full-size diagram
Parts — matched to the diagram numbers
1

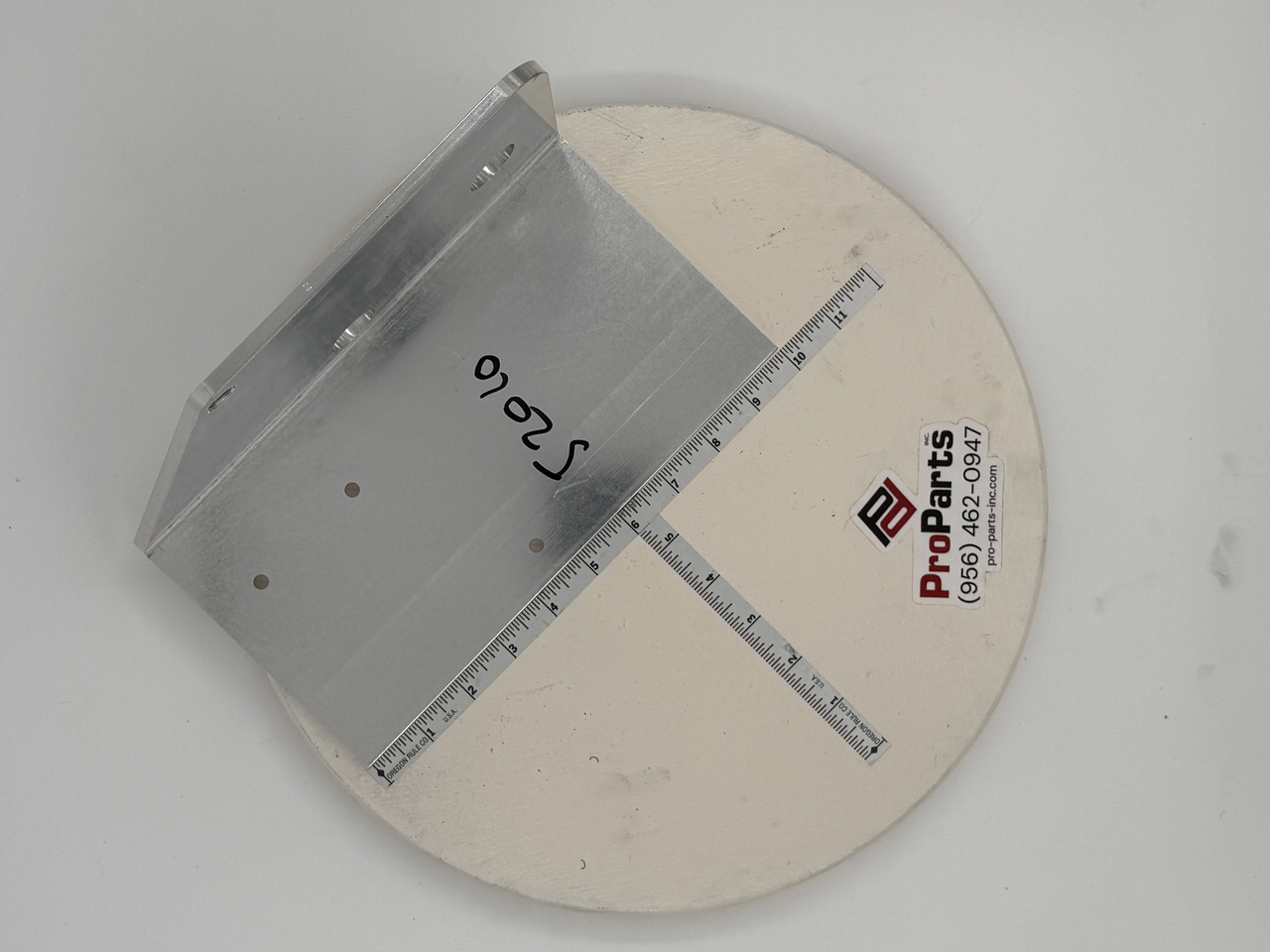

#01 PT-35 Port Side Motor Rail
Part #cmc-52010
View part →
2

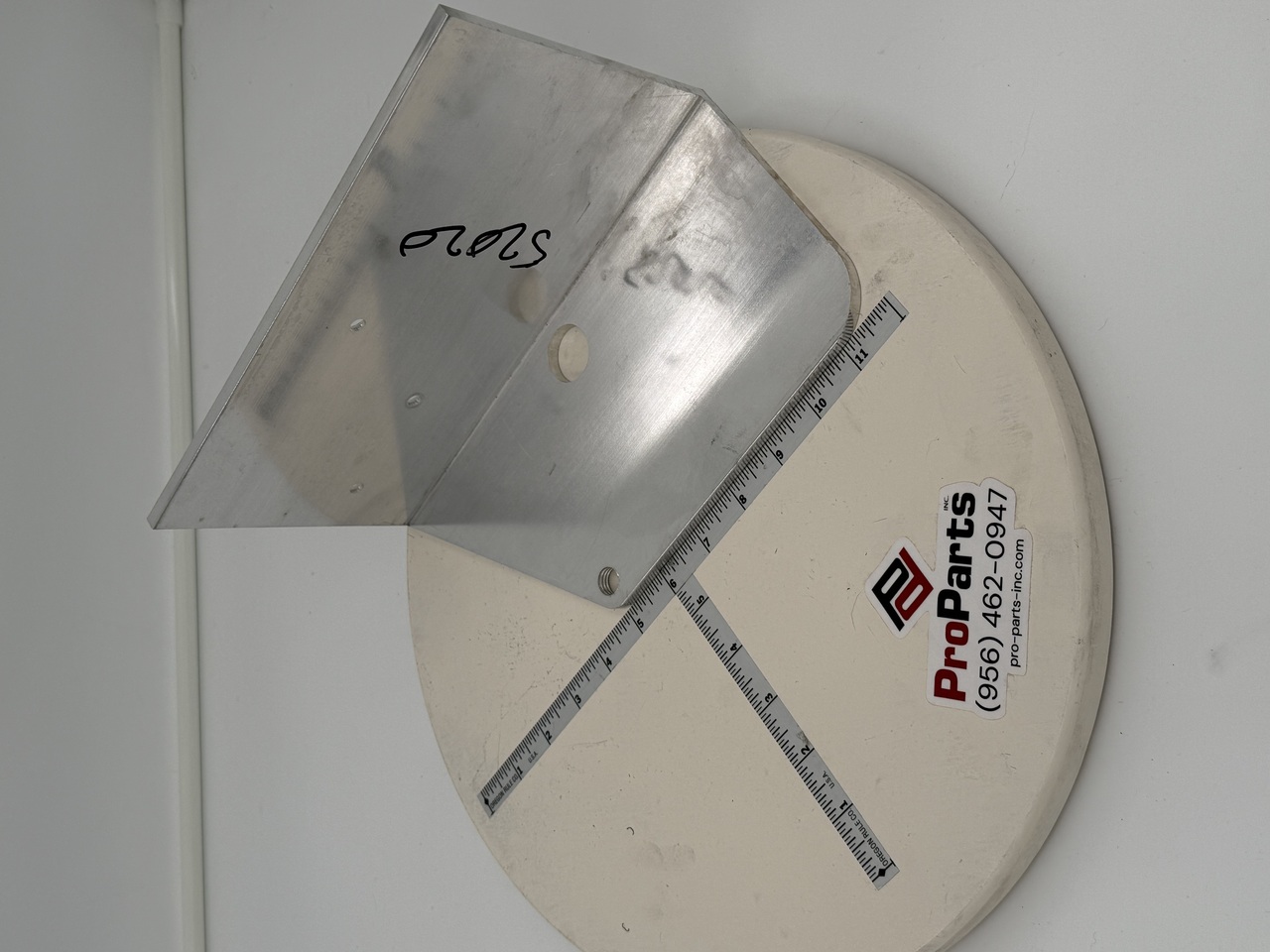

#02 PT-35 Starboard Side Motor Rail
Part #cmc-52020
View part →
3

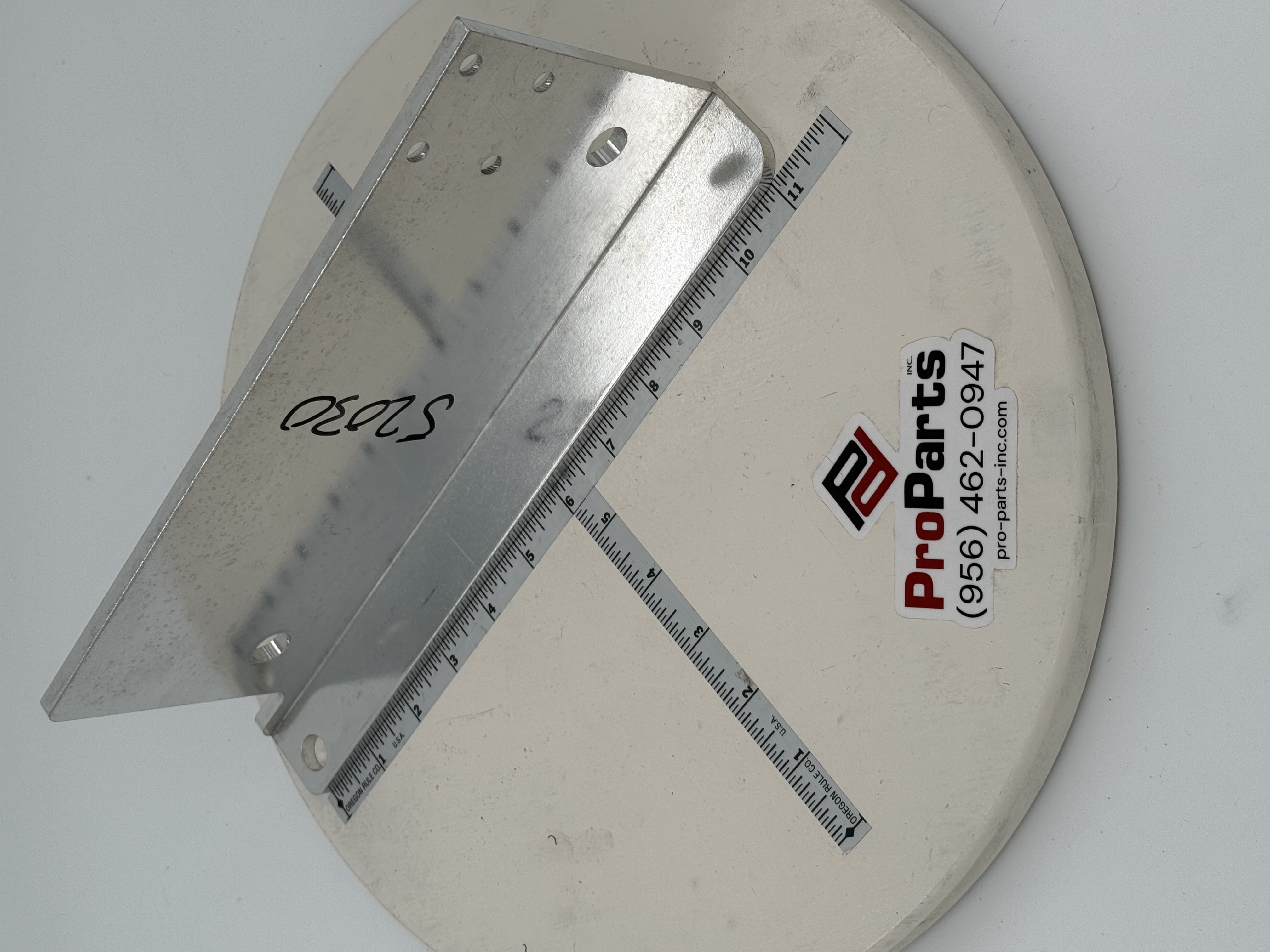

#03 PT-35 Port Side Transom Rail
Part #cmc-52030
View part →
4

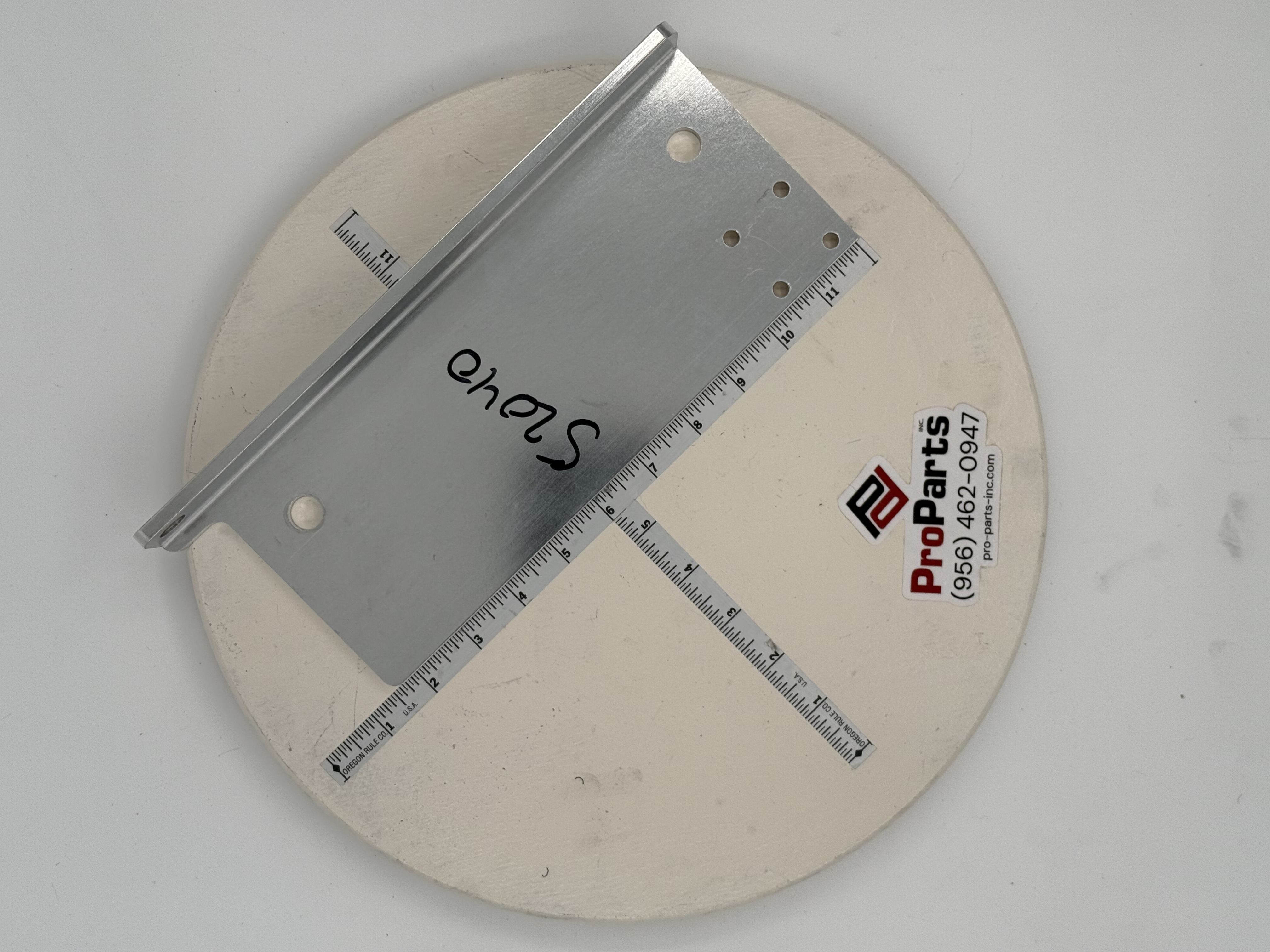

#04 PT-35 Starboard Side Transom Rail
Part #cmc-52040
View part →
5

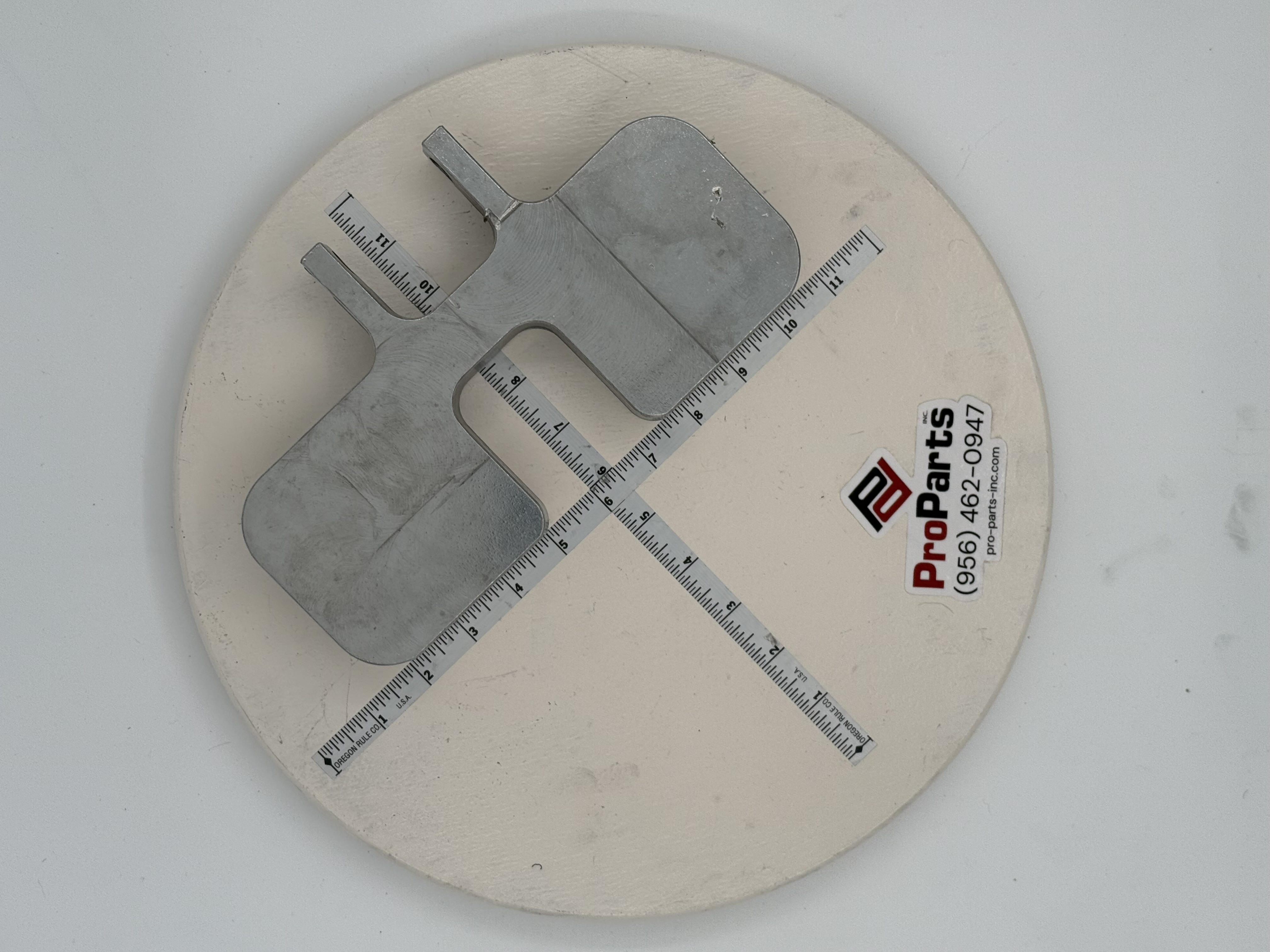

#05 PT-35 Top Clevis Bracket
Part #cmc-52050
View part →
6

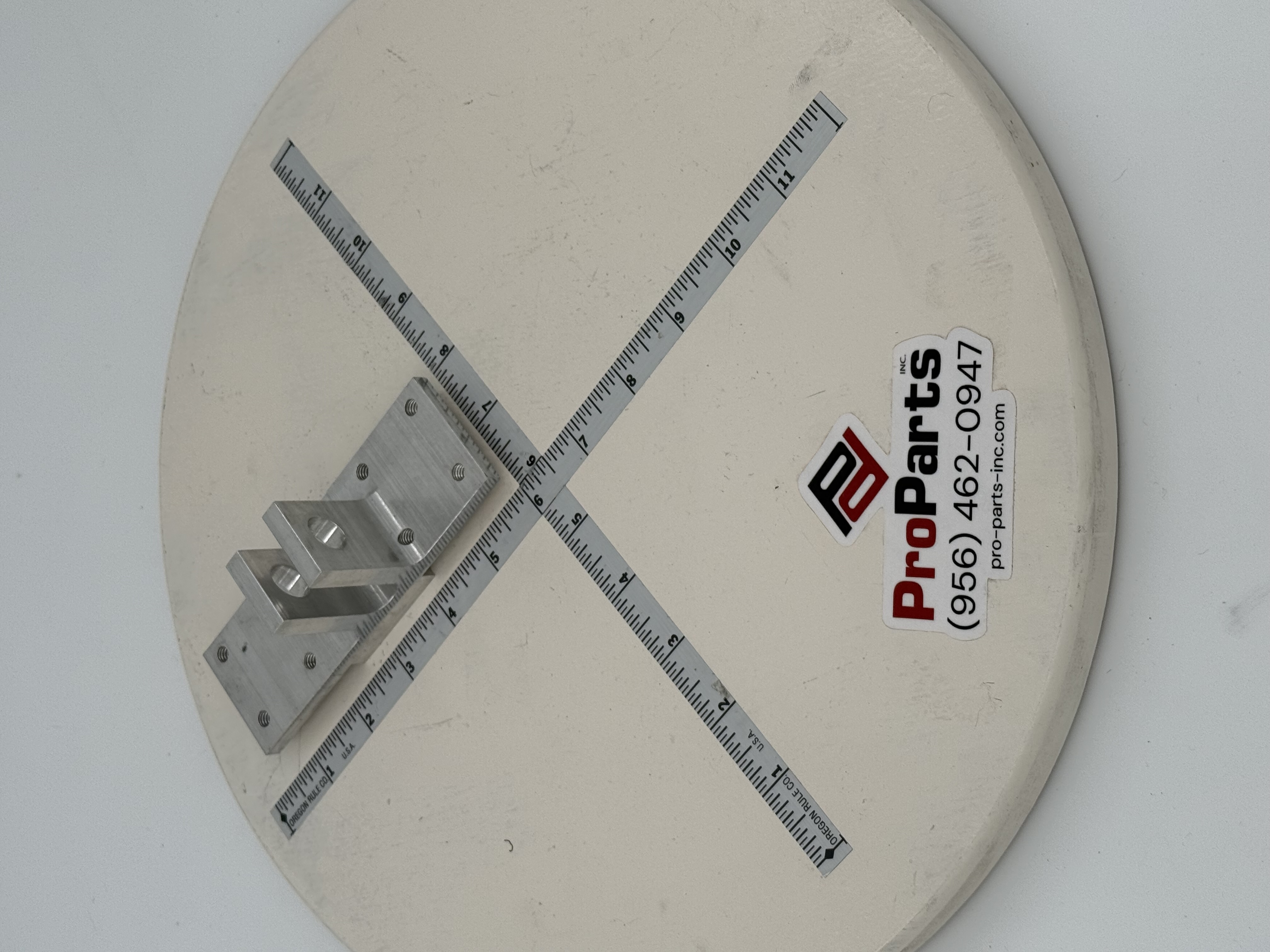

#06 PT-35 Bottom Clevis Bracket
Part #cmc-52060
View part →
7

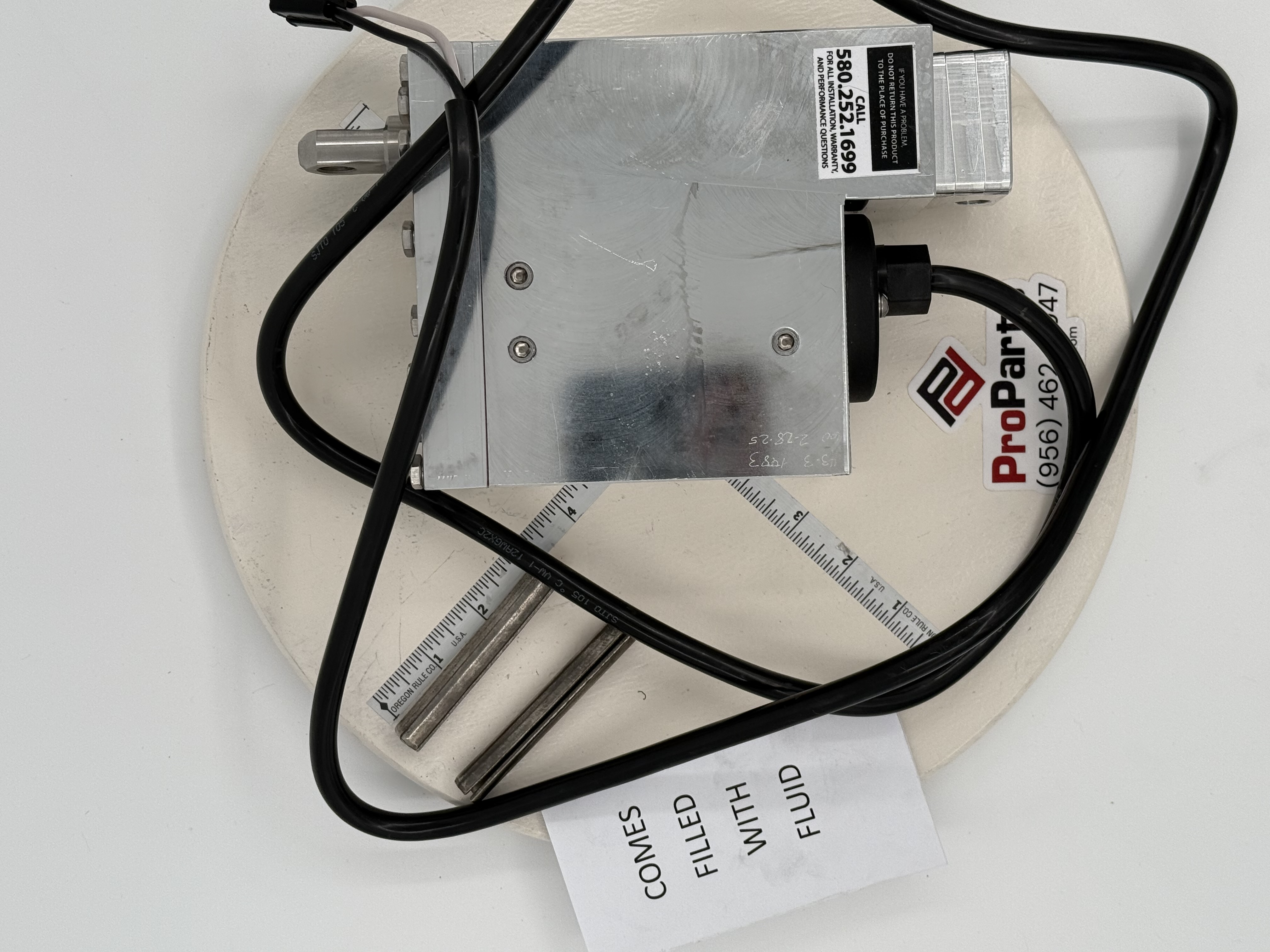

#07 CMC PT-35 High Speed Hydraulic Actuator
Part #CMC-7342
View part →
8

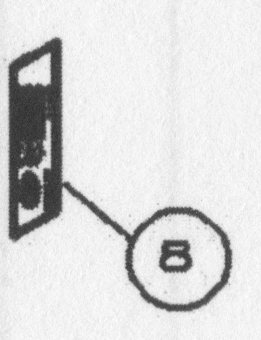

#08 PT-35 Serial Number Tag
Part #cmc-52130
View part →
9

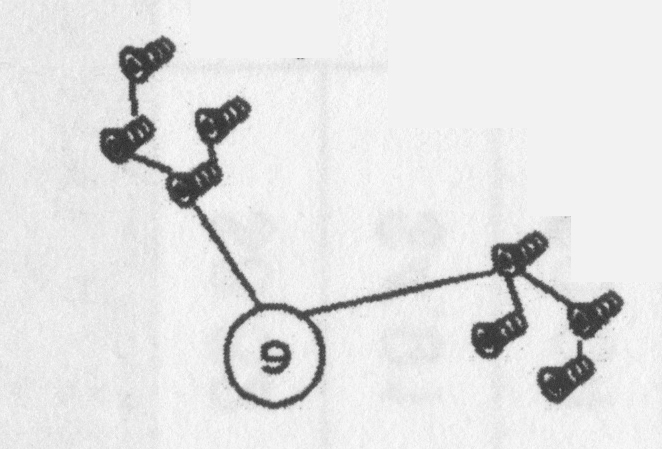

#09 PT-35 Flat Head Socket Cap Screw set of 14
Part #cmc-52070 X 14
View part →
10

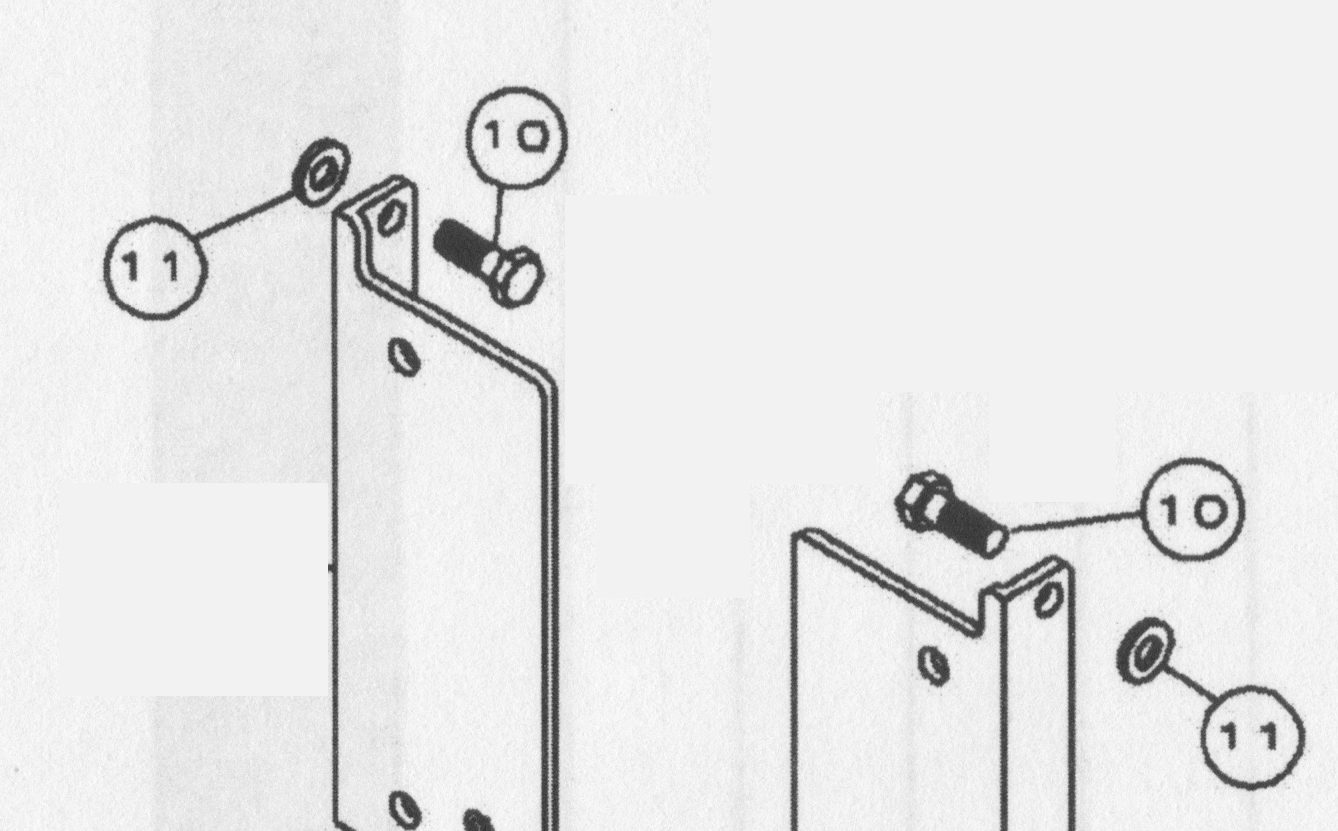

#10 PT-35 Special Hex Head Cap Screw Set of 2
Part #cmc-52150 X 2
View part →
11
#11 PT-35 Natural Nylon Flat Washers set of 2
Part #cmc-52120 X 2
View part →
12
#12 PT-35 Helical Spring Lock Washers set of 2
Part #cmc-6036 X 2
View part →
13

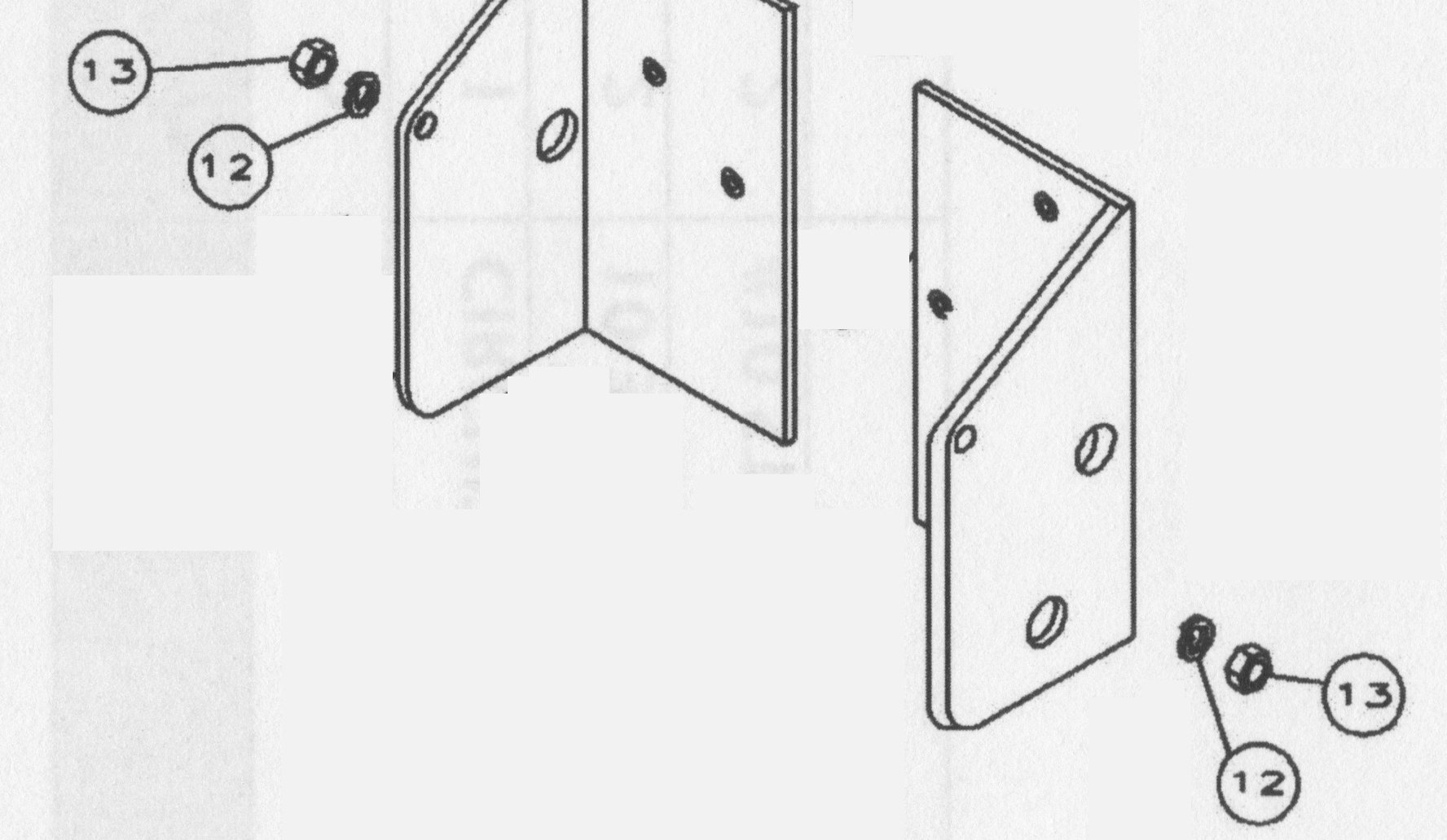

#13 PT-35 Two Way Self Locking Hex Nut set of 2
Part #cmc-7080 X 2
View part →
14

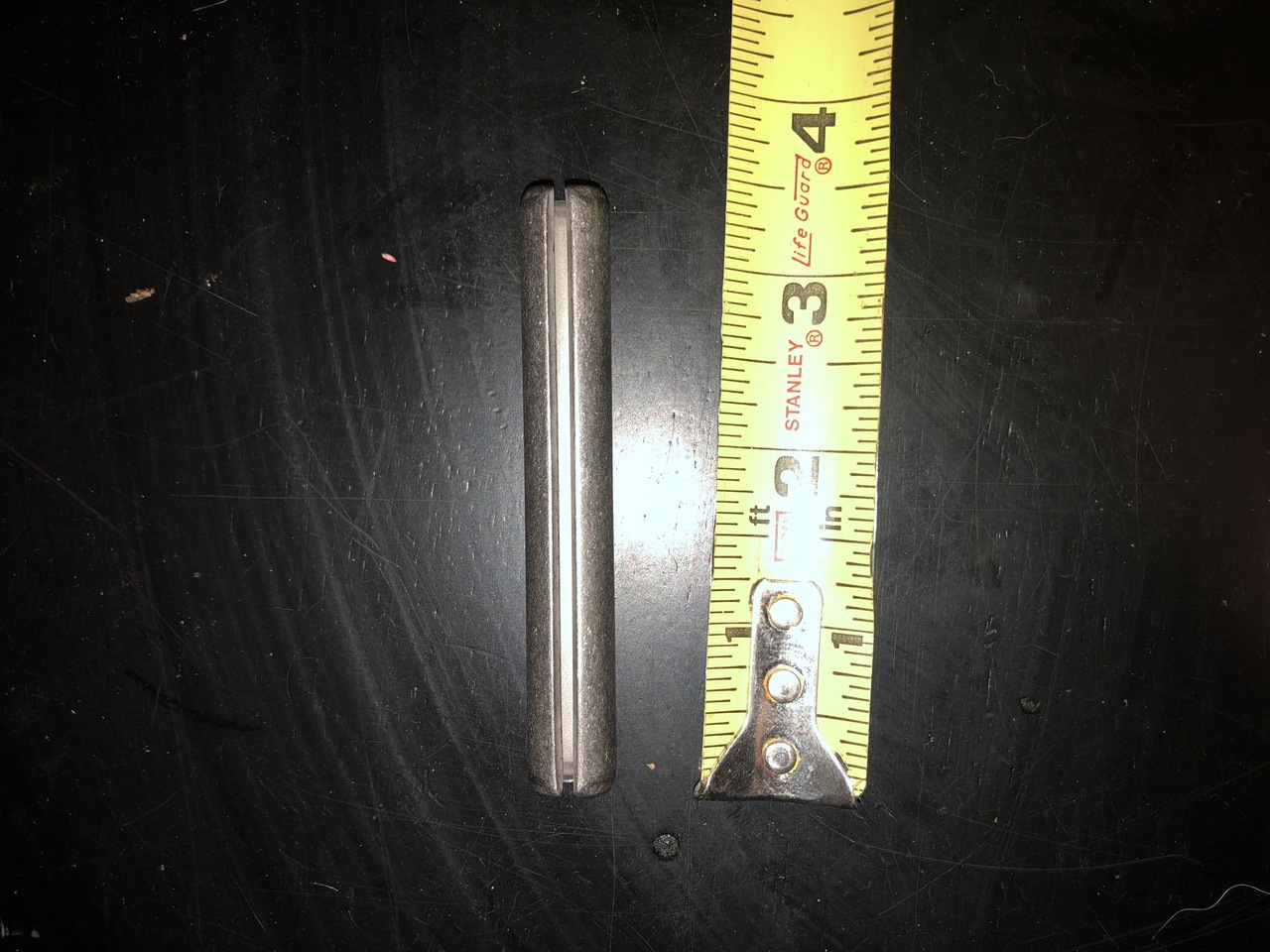

#14 PT-35 Hydraulic Actuator Mounting Spring Pin Set of 2
Part #cmc-6009 X 2
View part →
15

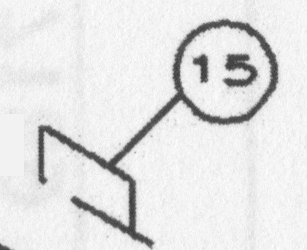

#15 PT-35 Warning Sticker
Part #cmc-52140
View part →
16

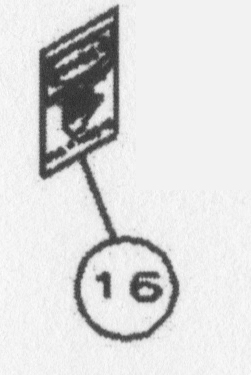

#16 PT-35 Watch your hands warning label set of 2
Part #cmc-51222 X 2
View part →
17

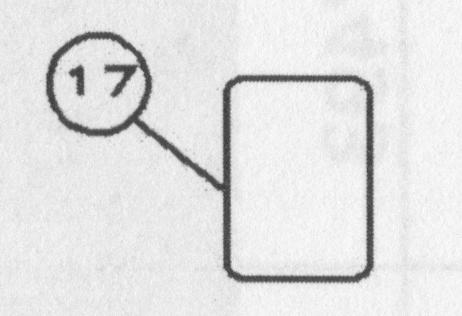

#17 PT-35 Tilt and Trim decal set of 2
Part #cmc-52202 X 2
View part →
19

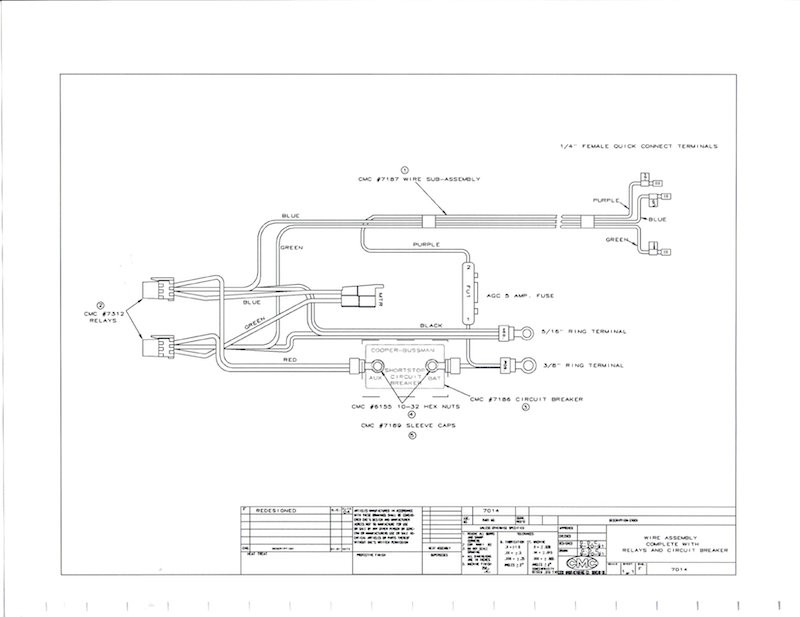

#19 PT-35 Tilt and Trim Wiring Harness
Part #19-cmc-7014g
View part →
20

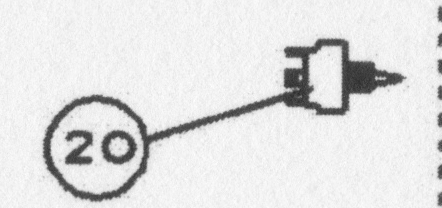

#20 PT-35 Tilt and Trim Toggle Switch
Part #cmc-7123-pt-35
View part →
21

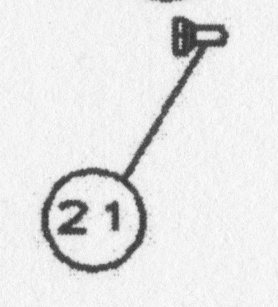

#21 PT-35 Toggle Switch Rubber Boot
Part #cmc-7124-pt-35
View part →
22

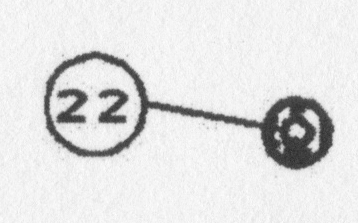

#22 PT-35 Toggle Switch Plate
Part #cmc-51380-pt-35
View part →
25

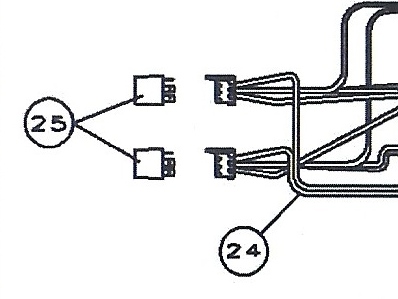

#25 PT-35 80 amp relay
Part #cmc-7493-pt-35
View part →
26

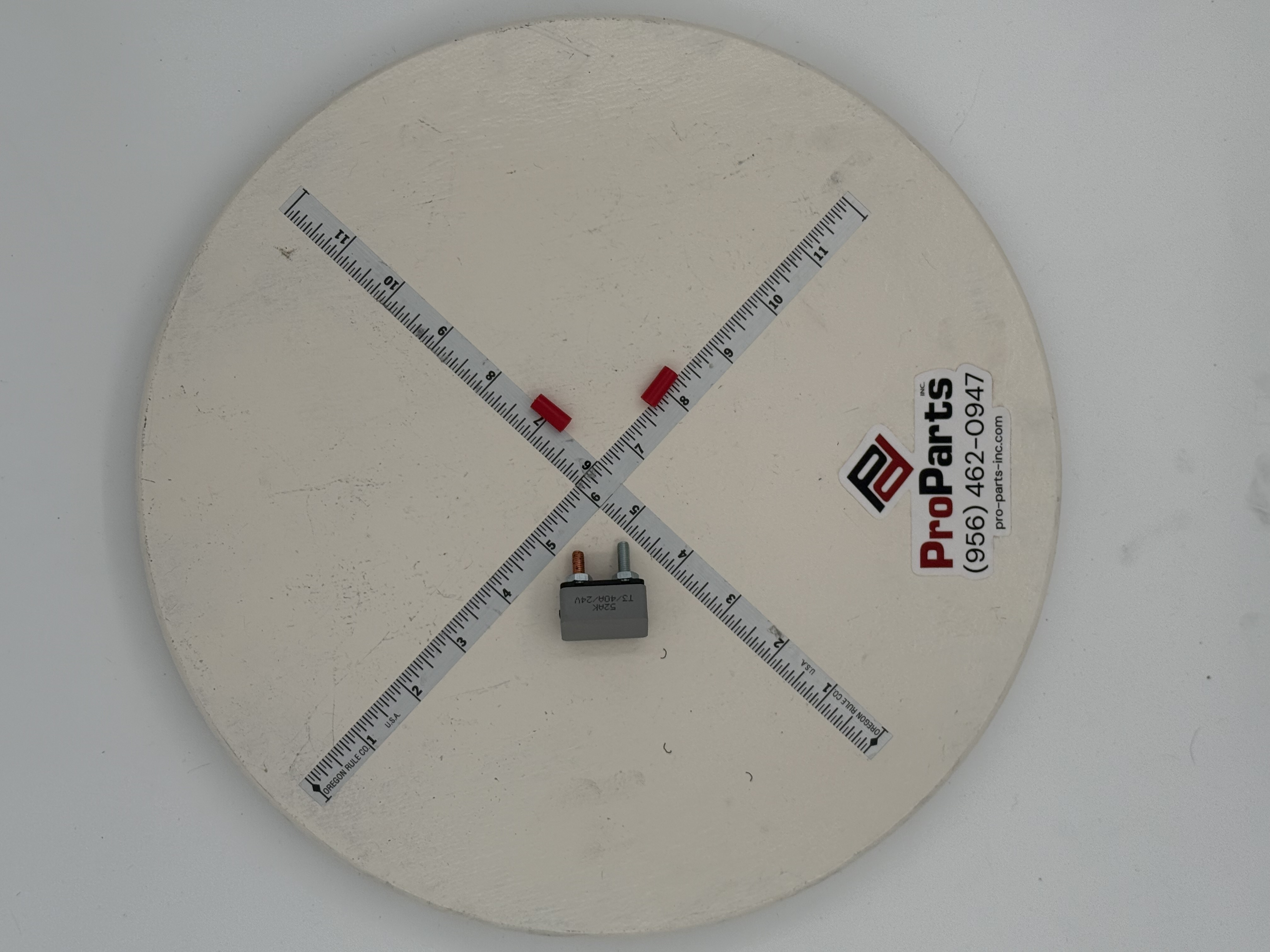

#26 PT-35 wiring harness circuit breaker
Part #cmc-7186
View part →
CMC PT-35 Hydraulic Electric Tilt Trim Unit 52100
Part #CMC52100
View part →
CMC PT-35 Owner's Manual 52160
Part #CMC52160
View part →
CMC PT-35 Warning sticker 52140
Part #CMC52140
View part →
