Product Description

CMC PT-130 Hydraulic Electric Tilt Trim with Gauge 13001

PT-130 Tilt trim with gauge Features:

  • This Hydraulic Tilt and Trim 13001 unit rated for 130 HP and smaller outboard engines.
  • Provides 6" Set Back to Enhance Boat Stability and Performance.
  • 20 degrees of trim and a total of 90 degrees of tilt and trim on the transom.
  • Fabricated from 1/2 inch 6061 T6 extruded aluminum and attached with stainless steel fasteners.
  • 4 stainless steel motor mounting bolts included.
  • This CMC Electric Hydraulic Tilt and Trim Unit 13001 is easily adjustable from top or bottom.
  • The boater can then move the engine up and down as well as tilting it in and out with the power tilt and trim.
  • This PT-130 with gauge comes with all the necessary electrical components for installation are included.
  • It will come with everything you will need, full of fluid, tested and ready for operation. It includes the wire assembly (with relays circuit breaker and fuse), switch, motor mounting bolts and owner's manual. If your motor has clamps that tighten inside of the splash well, you will need to also purchase the 13022 transom clamp adapter.

Hydraulic System Features:

  • This CMC Hydraulic Tilt and Trim 13001 Totally waterproof!
  • The marine electric hydraulic system of this Hydraulic Tilt and Trim unit 13001 is made of 100% non-ferrous material for corrosion resistance in any water.
  • The Hydraulic actuator of this Hydraulic Tilt and Trim unit is completely self contained with its own fluid reservoir.
  • The Hydraulic tank and hoses inside the boat are not necessary.
  • 40% more lifting capacity than other transom tilt trim units on the market.
  • Quality control guaranteed by computer aided design and precision machining.
  • This Hydraulic Tilt and Trim 13001 unit provides better fuel efficiency.
  • Get this item for your convenience.
  • View more information: PT-130 Tilt Trim Catalog

 Note: clamp-on motors need an adapter #13022
If your outboard bolts directly to the transom of your boat, this adapter is not required.

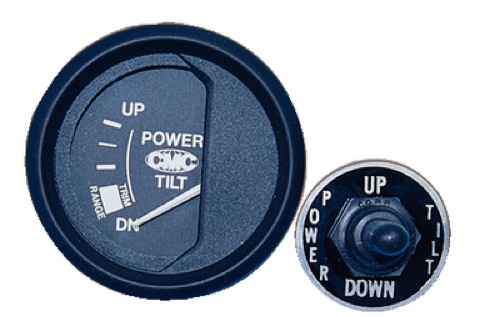

Tilt and Trim Gauge Features:

  • Provides safe and convenient height determination.
  • Includes an up down toggle switch as standard equipment.
  • Sealed and drip proof and mounts in dash.
  • Standard 2 inch mount gauge.
  • Click on this link from America Today to see the PT-130 in Action!!!!! PT-130 Video


PT-130 Dimension



  • We ship CMC orders from Monday to Thursday (until 1:00 P.M Central Time) except Friday to Sunday orders will be shipped on Monday.
  • We accept orders within the USA and international. Please Email Us for a less expensive alternative to UPS.


Warranty Information

Manufacturer's warranty
